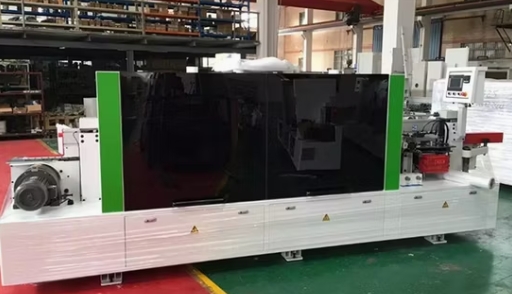

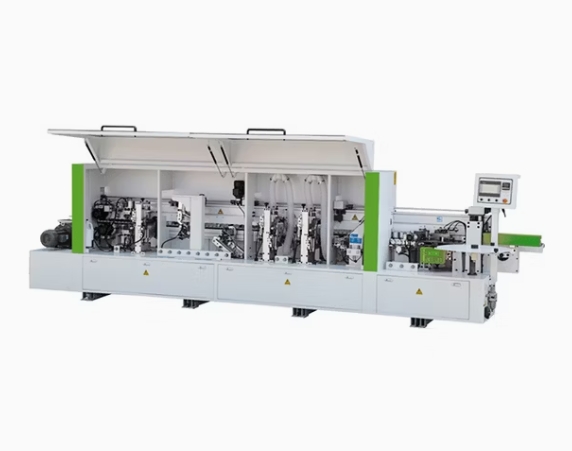

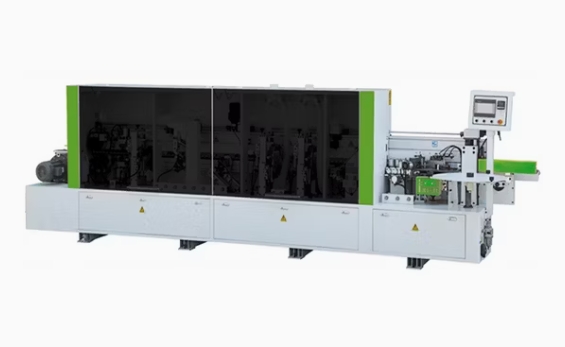

Comprehensive automatic edge banding machine designed for high-efficiency processing of wood and PVC edges, featuring multiple finishing functions for furniture manufacturing.
Integrates multiple functions: gluing, end-cutting, rough/fine trimming, corner rounding, scraping, and polishing.
Handles a versatile range of edge tape thicknesses from 0.3mm to 4mm.
Accommodates panel thicknesses varying from 9mm up to 60mm.
Features a variable feeding speed (12-23m/min) for optimal control over production quality.
Equipped with an electrical lift for convenient height adjustments.
Suitable for processing various materials including wood, PVC, MDF, and particleboard.
Robust construction designed for industrial woodworking applications and furniture production lines.
Edge Tape Thickness: 0.3-4 mm
Panel Thickness: 9-60 mm
Panel Feeding Speed: 12-23 m/min (Variable)
Minimum Panel Width: ≥ 60 mm
Required Air Pressure: 0.6 MPa
Total Power: 14 kW
